Gentle

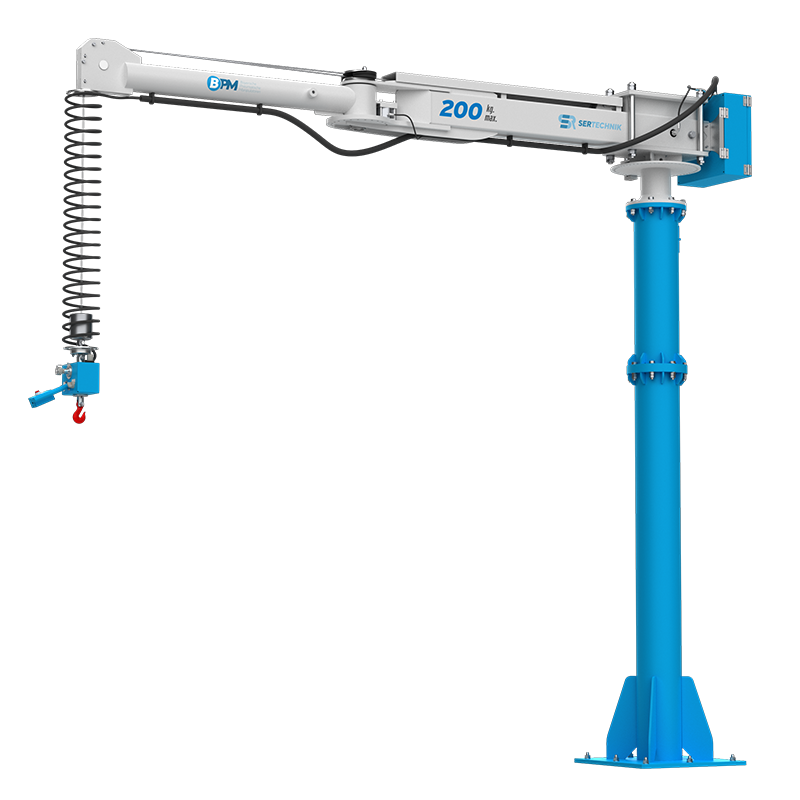

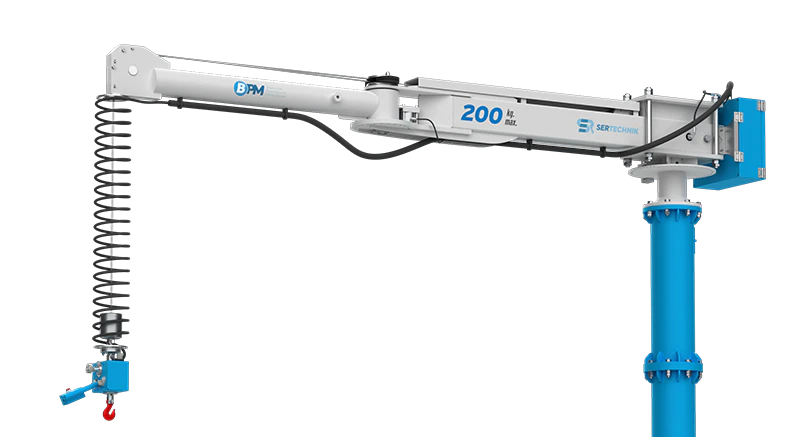

Pneumatic Manipulator with Rope System

Gentle Pneumatic Manipulators are designed to move operator-centered loads within the work area with minimum effort. It balances the weight of the load, allowing the operator to carry the load quickly and safely.

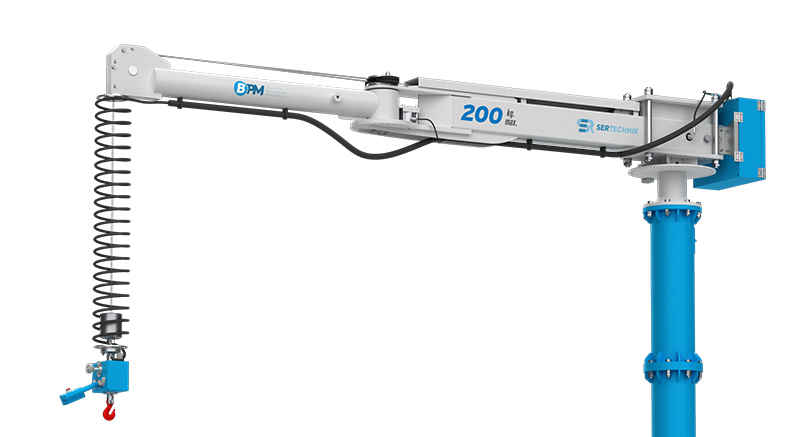

The balance of the load to be carried is provided by connecting two steel cables to the balance unit. Manipulators, either floor mounted or ceiling mounted. Manipulators are produced with standard hooks, but they can also be produced with special holders designed according to needs. The manipulator, which consists of two arms, has a total of two brakes on the arm rotation axis.

Works with dry, filtrated (40 μm) and oil free compressed air (min. 0.7/0.8 MPa).

300 kg max. weight capacity. 4.500 mm max. radius. 2.000 mm vertical lift.
140 nl/min max. air consumption.

Application Areas
Automotive, Food, Chemistry, Building, Electric, Electronic, Foundry, Packaging, Wood, Textile, Mechanics, Ceramic, White goods, Tobacco, Caoutchouc, Rubber

Download Gentle Data Sheet
  Gentle 200   Gentle 300
Weight Capacity / kg   200 200 200 200 | 300 300 300 300
Max. Radius / mm Rmax 3000 3500 4000 4500 | 3000 3500 4000 4500
Min. Radius / mm Rmin 650 760 870 980 | 650 760 870 980
Vertical Lift / mm H 2000 2000 2000 2000 | 2000 2000 2000 2000
Min. Vertical Lift / mm *h 200 200 200 200 | 200 200 200 200
Max. Height / mm *Hmax 2900 2900 2900 2900 | 2900 2900 2900 2900
Min. Height / mm *Hmin 2550 2550 2550 2550 | 2550 2550 2550 2550
* Marked dimensions can change according to the customer request.

MOUNTING OPTIONS

Gentle

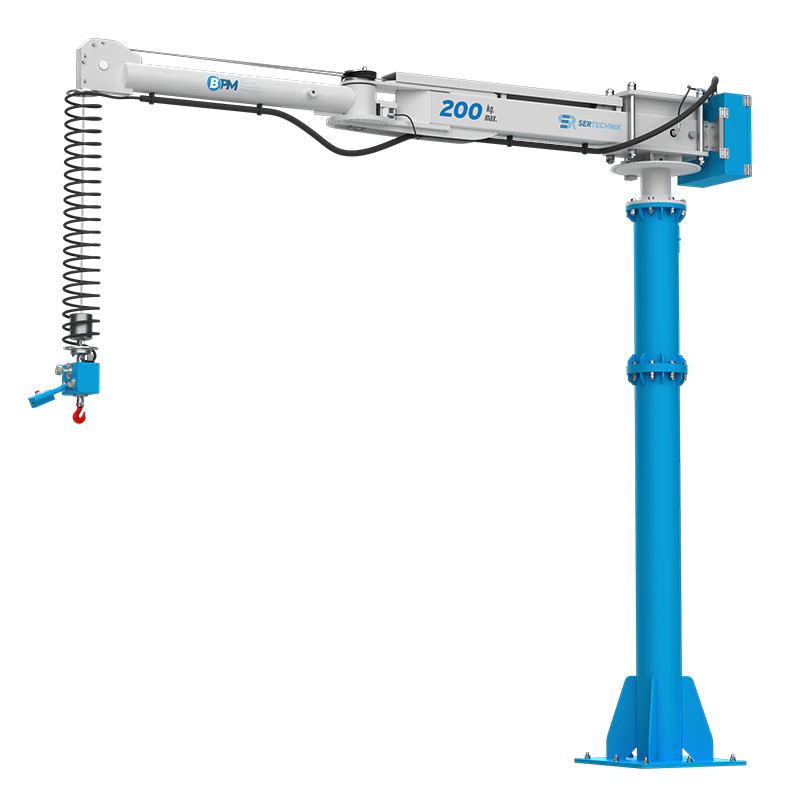

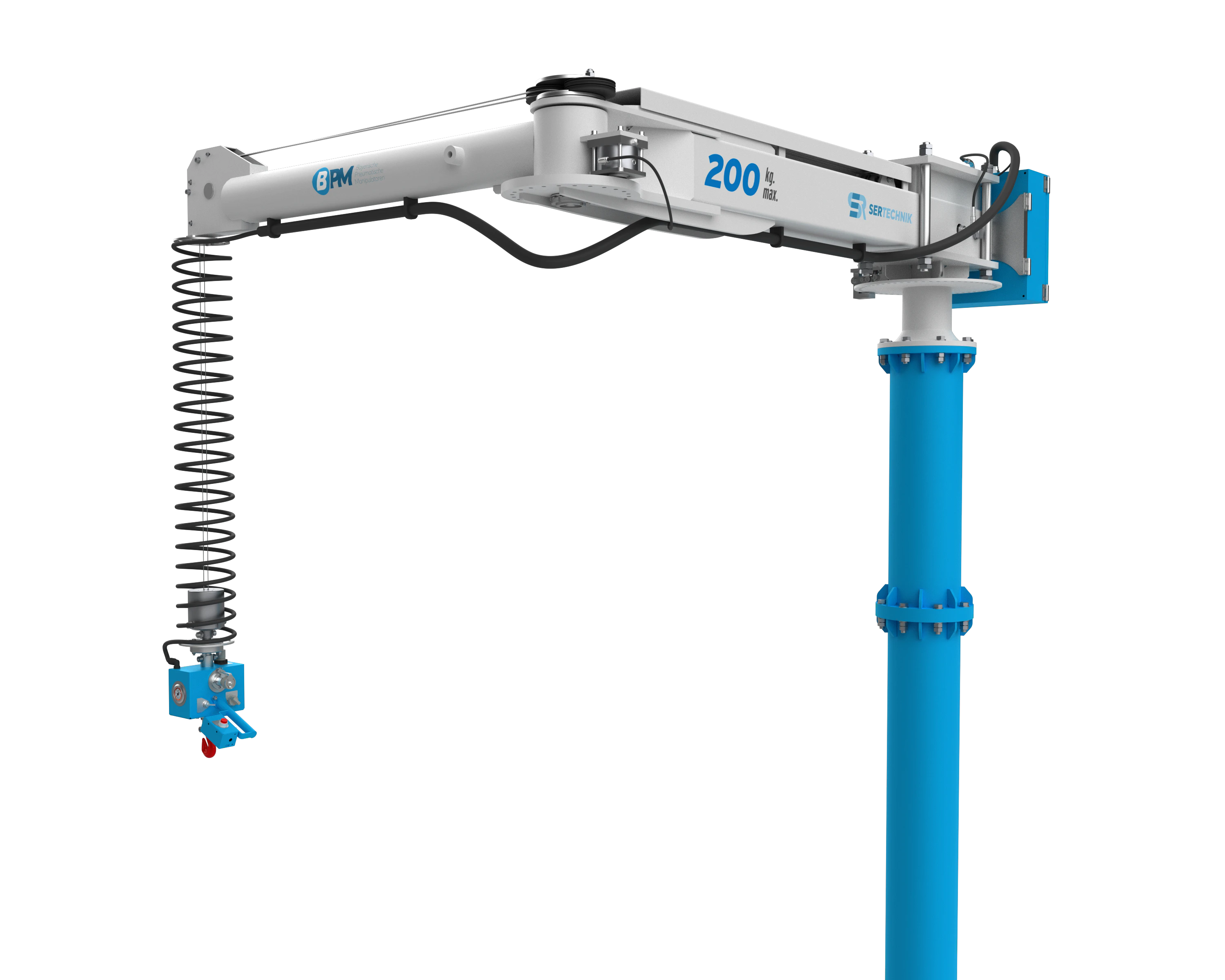

Column Mounted GY

Gentle

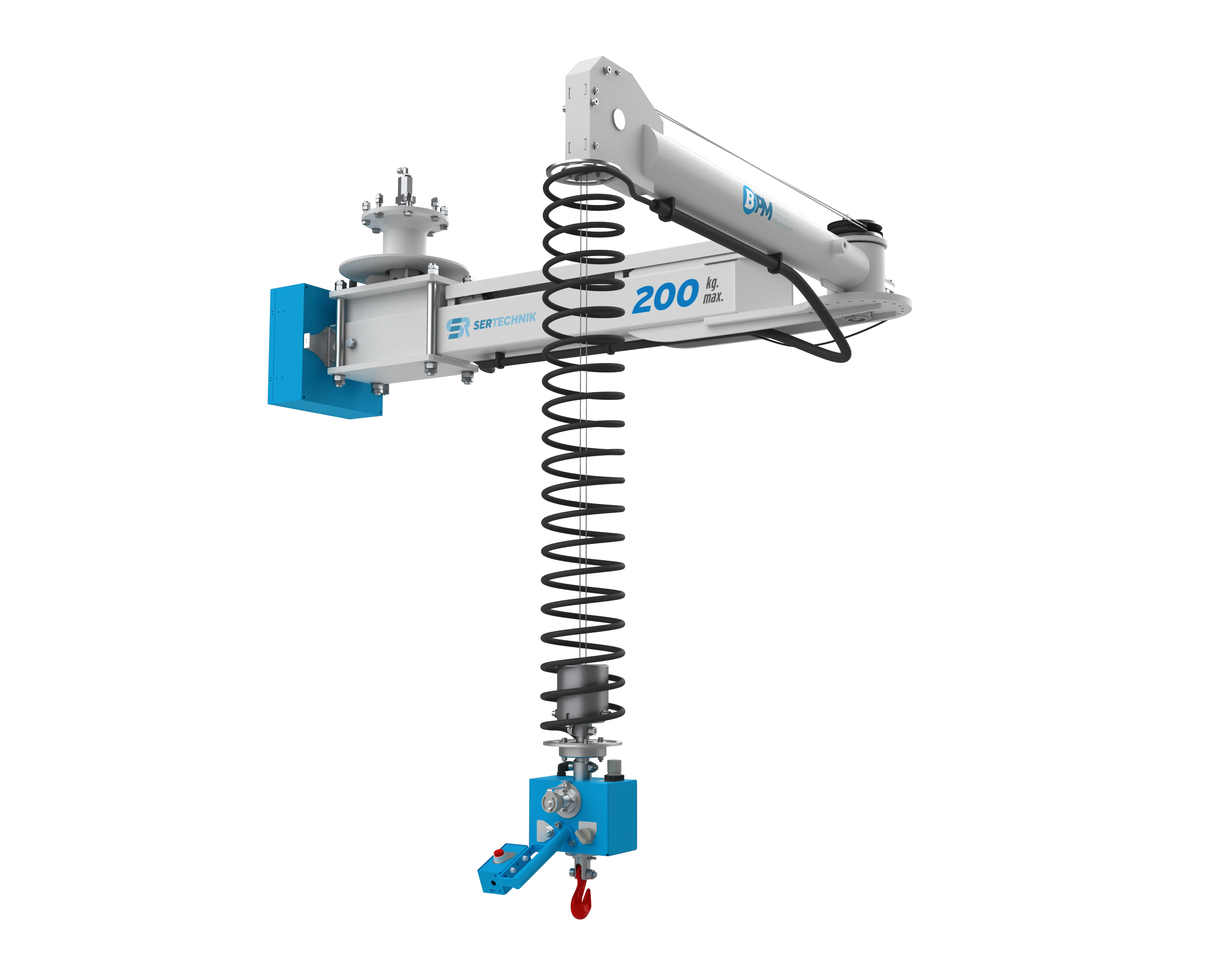

Overhead Mounted GT

Gentle

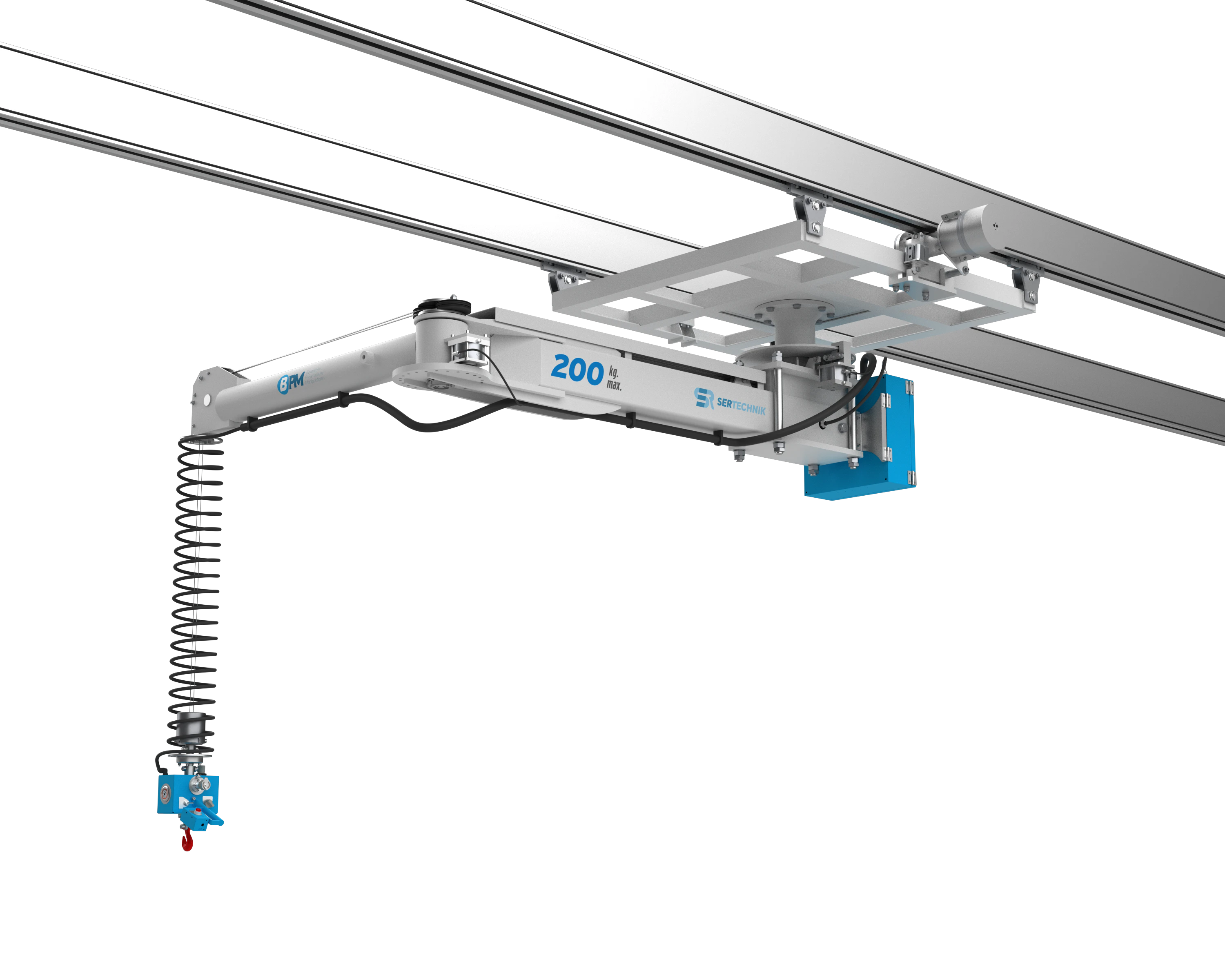

Overhead Trolley Mounted GTA
