Gentle Plus

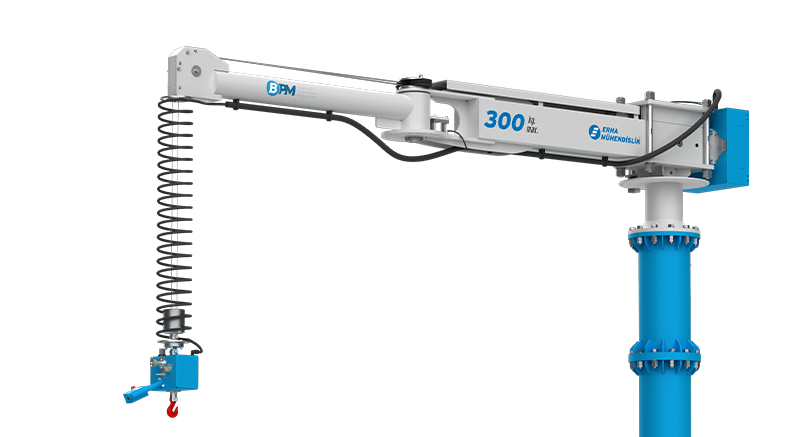

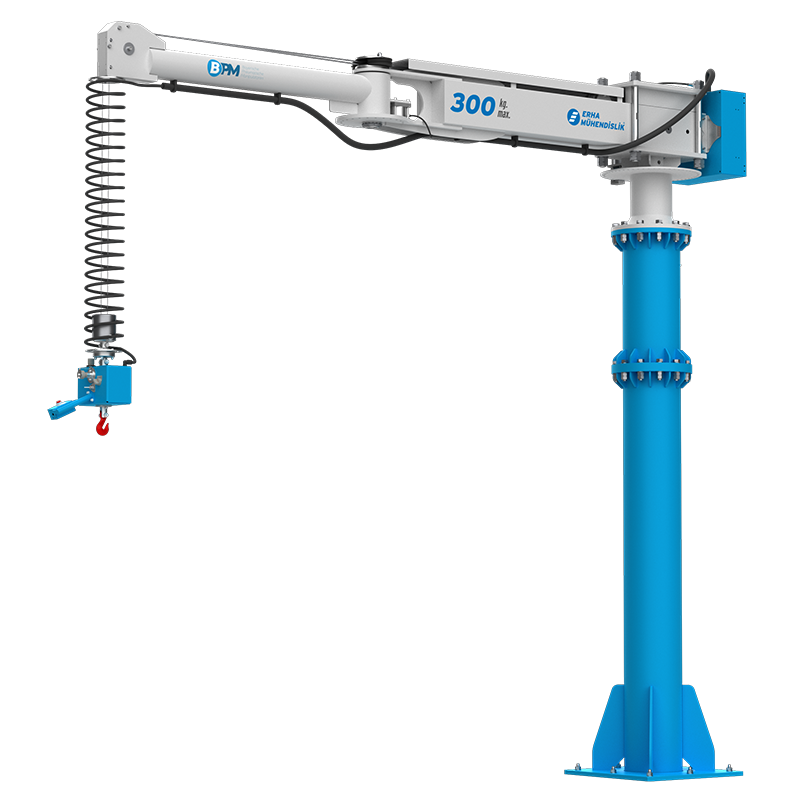

Gentle Plus Pneumatic Manipulator with Rope System

Application Areas
Automotive, Food, Chemistry, Building, Electric, Electronic, Foundry, Packaging, Wood, Textile, Mechanics, Ceramic, White goods, Tobacco, Caoutchouc, Rubber

Gentle Plus Download Digital Catalog
  Gentle
Weight Capacity / kg   300 250 200 150
Max. Radius / mm Rmax 3000 3500 4000 4500
Min. Radius / mm Rmin 915 1040 1170 1300
Vertical Lift / mm H 2000 2000 2000 2000
Min. Vertical Lift / mm *h 200 200 200 200
Max. Height / mm *Hmax 3570 3570 3570 3570
Max. Ceiling Height / mm *Hf 3750 3750 3750 3750
Min. Height / mm *Hmin 2880 2880 2880 2880
* Marked dimensions may vary depending on customer needs.

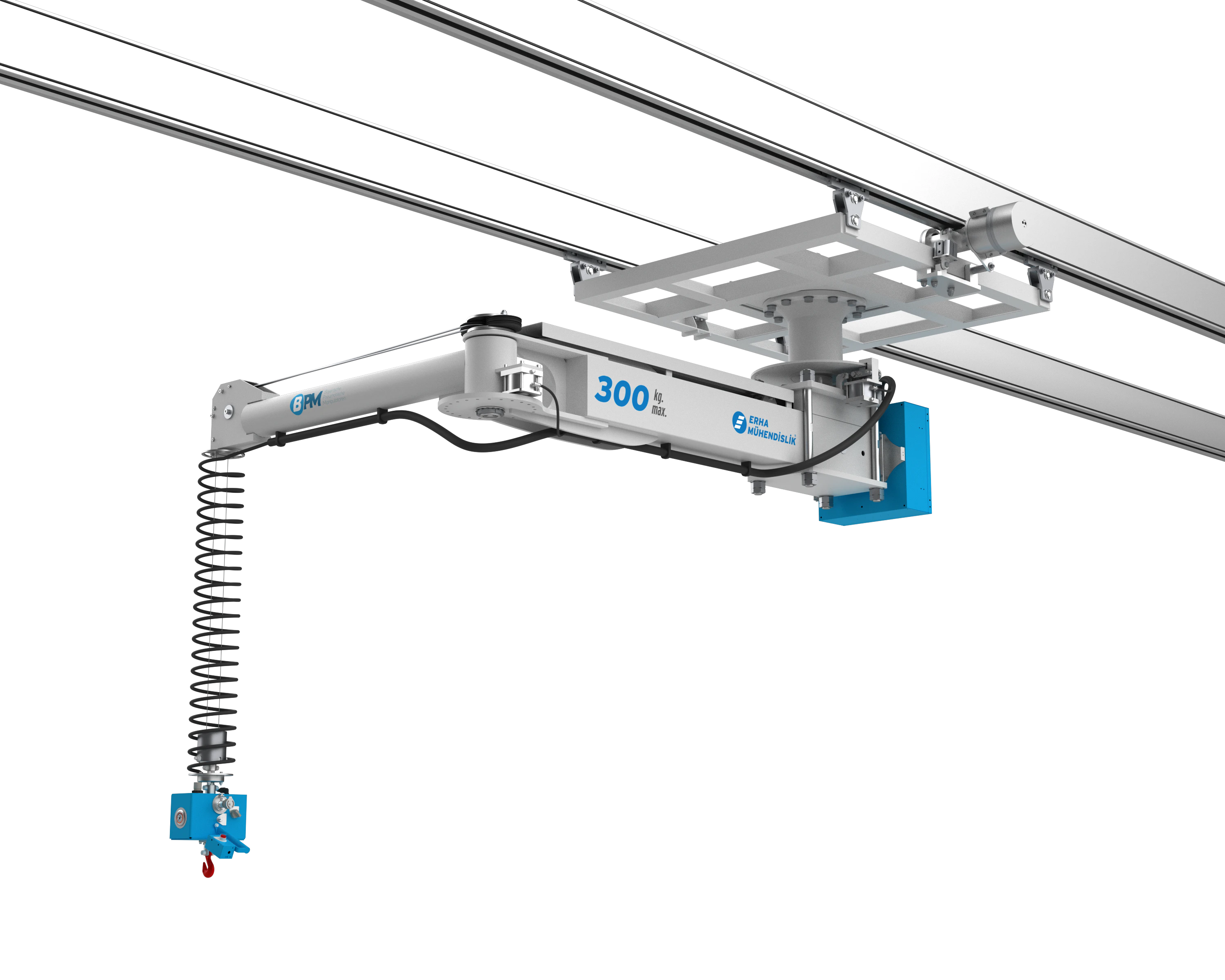

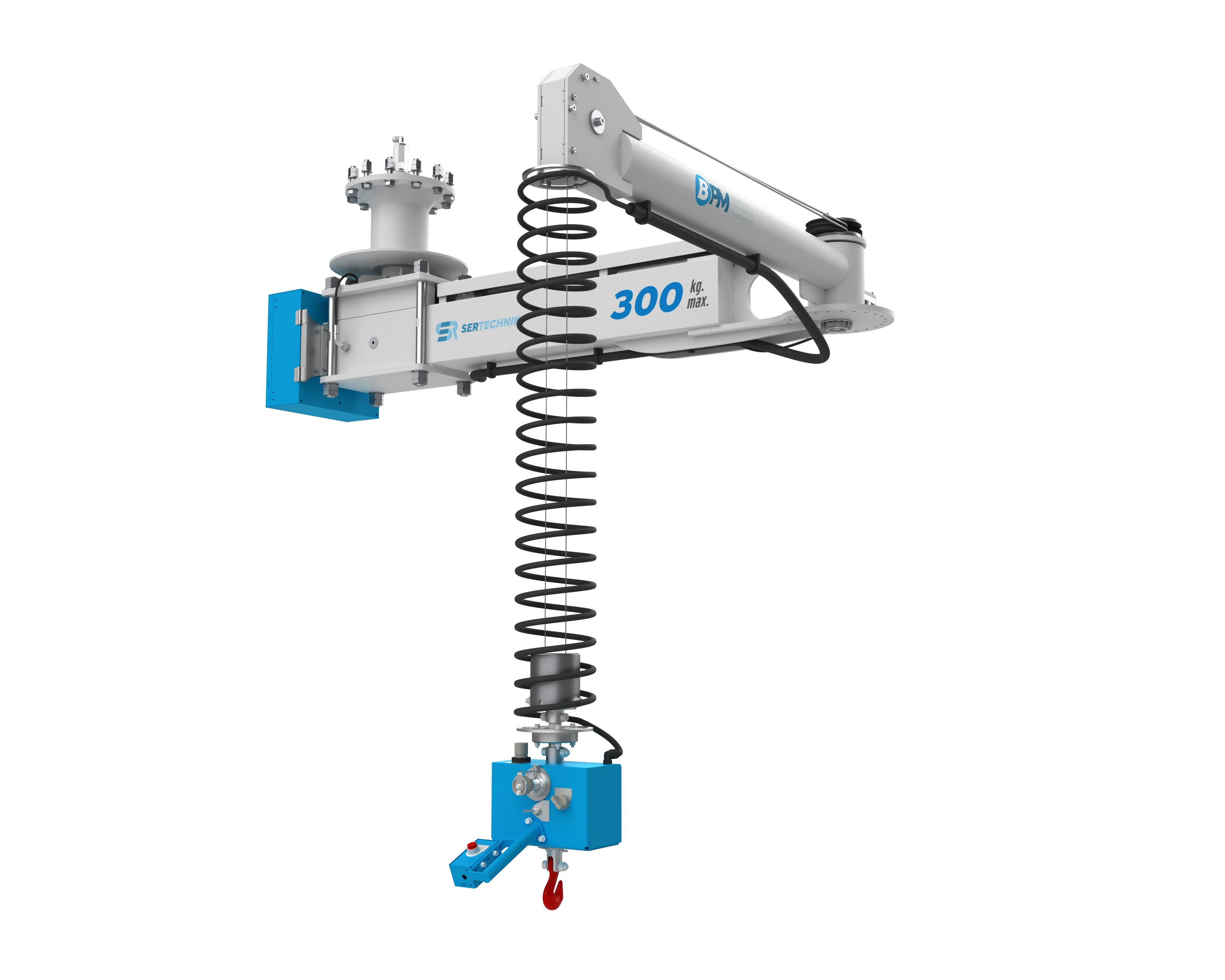

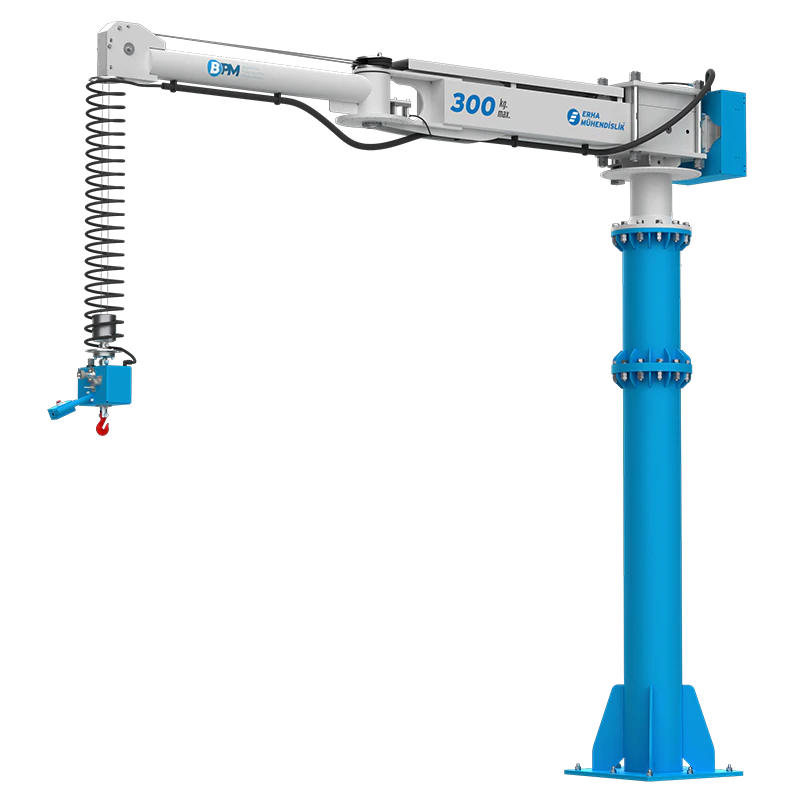

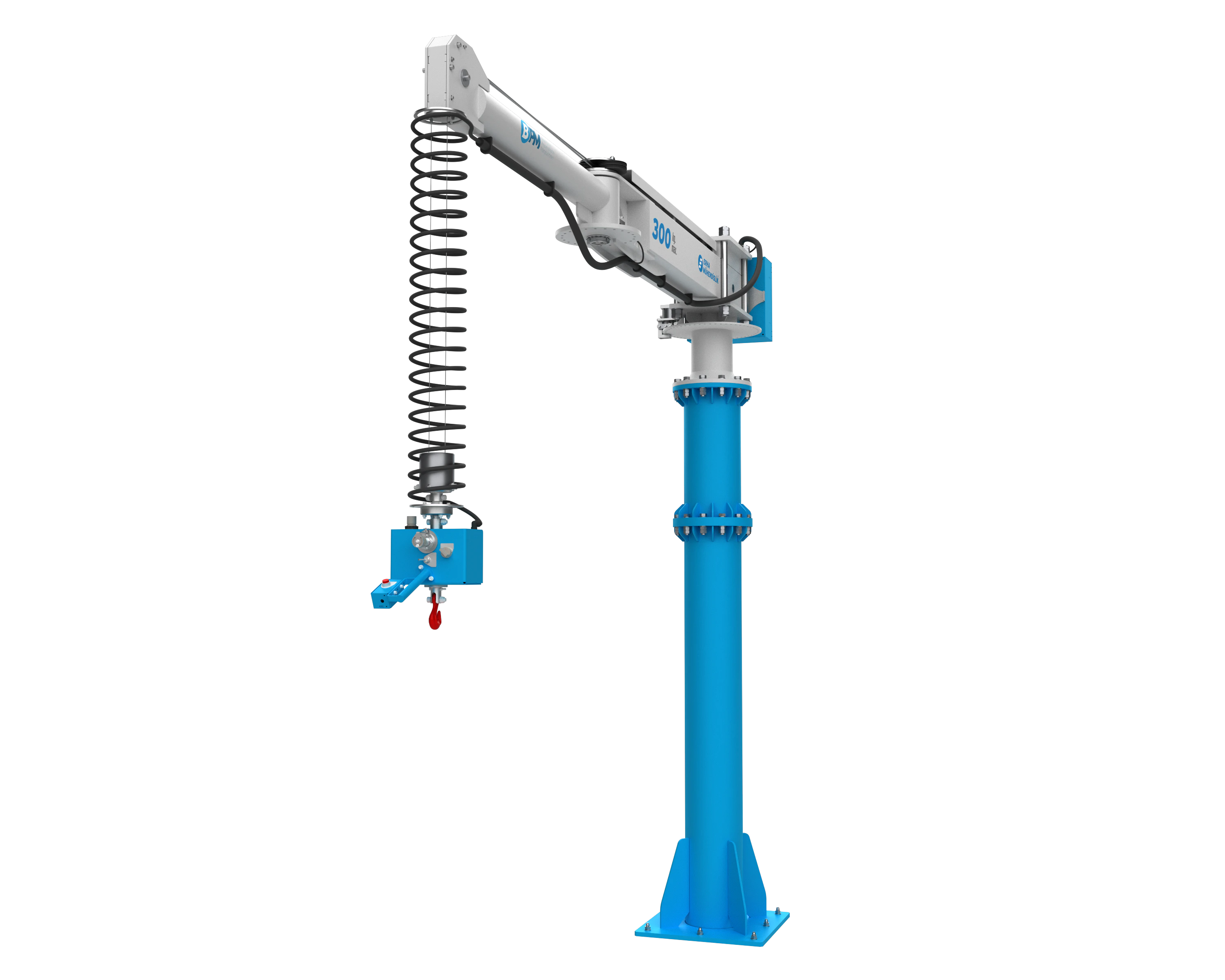

MOUNTING OPTIONS

VIDEOS
